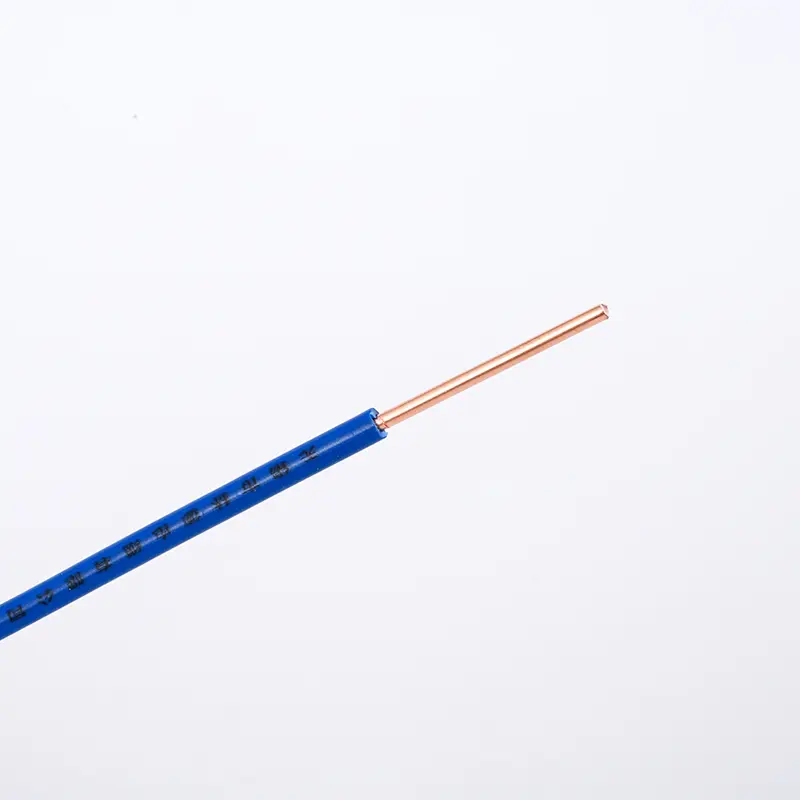

Wholesale 60227 IEC 05 BV Single-core non-sheathed cable with solid conductor for internal wiring for a conductor temperature of 70 °C Supplier, Suppliers

Code designation:60227 IEC 05.

Standards:IEC 60227-3

Rated voltage:300/500 V.

BV cables are in high demand worldwide for the construction of nearly all commercial, industrial, and residential properties. They are used to transmit electricity from the external power grid to buildings or homes.

Product Description

Construction

(1) Conductors

Number of conductors: 1.

The conductors comply with the requirements given in IEC 60228 for class 1 conductors.

(2) Insulation

The insulation is polyvinyl chloride compound of type PVC/C, applied around the conductor.

Technical Performance

Maximum conductor temperature in normal use: 70 °C

The use of the cable type 60227 IEC 05 comply with IEC 62440, which provides guidance on the safe use of electric cables with a rated voltage not exceeding 450/750 V.

Parameter Table

Nominal cross-sectional area (mm²) Thickness of insulation (mm) Mean overall diameter Minimum insulation resistance at 70°C (MΩ · km)
Lower limit Upper limit
0.5 0.6 1.9 2.3 0.015
0.75 0.6 2.1 2.5 0.012
1 0.6 2.2 2.7 0.011

Advantages

(1) Consistent Product Quality

To guarantee superior product standards, we carefully select premium-grade materials and employ state-of-the-art production methods. Our multi-stage quality assurance process includes thorough inspections at each phase: initial material screening, real-time production monitoring, intermediate product evaluation, and final quality verification. We enforce strict data documentation practices and maintain archived samples for every batch, providing complete product life cycle traceability to ensure accountability.

(2) Industry-Leading Delivery Speed

Our extensive inventory management system ensures sufficient stock availability across all product lines, allowing immediate response to time-critical orders. By maintaining strategic reserves of partially completed goods and implementing dynamic production scheduling, we achieve exceptional responsiveness to meet varying customer deadlines without sacrificing quality.

(3) Tailored Customization Services

For specialized product requests, we operate an integrated project management system where each order receives individualized attention from a cross-functional task force. This dedicated unit brings together technical developers, sales specialists, manufacturing engineers, and customer service representatives to deliver precisely configured solutions that align with each client's unique specifications.

Frequently Asked Questions

Q1: What is the maximum operating temperature of this cable?
The maximum conductor temperature in normal use is 70°C.
Q2: Does this cable comply with international standards?
Yes, it complies with IEC 60228 for class 1 conductors and IEC 62440 standards.
Q3: Can I request customized cable specifications?
Yes, we provide tailored customization services through our integrated project management system to meet your unique requirements.
Q4: How do you ensure product quality during production?
We employ a multi-stage quality assurance process, including material screening, real-time monitoring, and final verification for every batch.
Q5: What is the delivery time for urgent orders?
We utilize an extensive inventory management system and dynamic production scheduling to achieve industry-leading delivery speeds for time-critical orders.
