Linde Cable
1 / 1

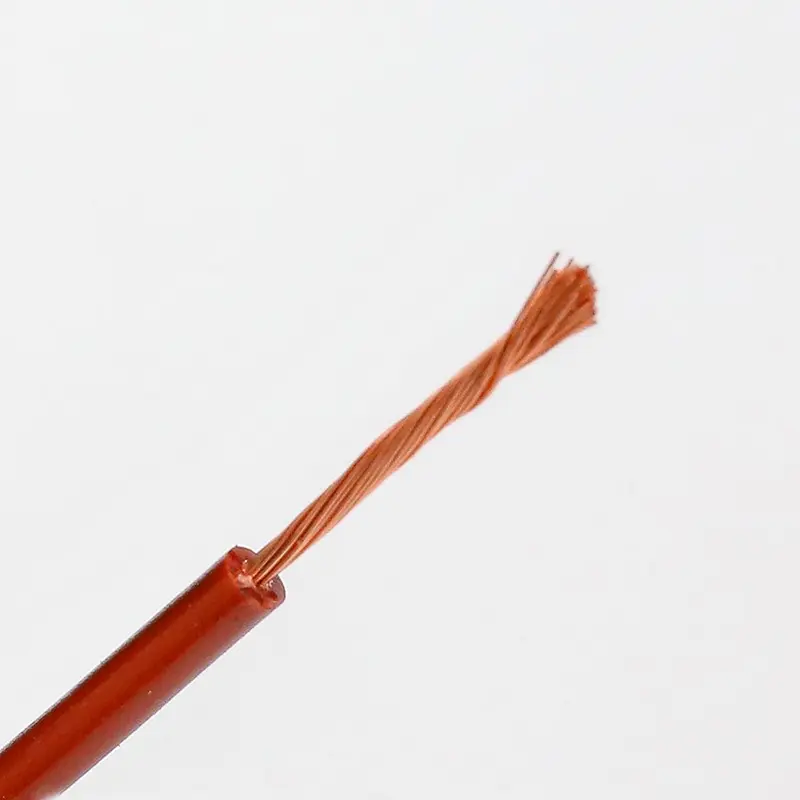

(1) Conductors
Number of conductors: 1.
The conductors comply with the requirements given in IEC 60228 for class 5 conductors.
(2) Insulation
The insulation is polyvinyl chloride compound of type PVC/C, applied around the conductor.
Maximum conductor temperature in normal use: 90°C
The use of the cable type 60227 IEC 08 complies with IEC 62440, which provides guidance on the safe use of electric cables with a rated voltage not exceeding 450/750 V.
In circumstances in which it is possible to guard against thermoplastic flow, and reduced insulation resistance can be tolerated, a PVC compound suitable for continuous use at 90°C can be operated at temperatures up to 105°C for a reduced total working duration.
| Nominal cross-sectional area of conductor (mm²) | Thickness of insulation Specified value (mm) | Mean overall diameter | Minimum insulation resistance at 90°C (MΩ·km) | |
|---|---|---|---|---|
| Lower limit (mm) | Upper limit (mm) | |||
| 0.50 | 0.6 | 2.1 | 2.5 | 0.013 |
| 0.75 | 0.6 | 2.2 | 2.7 | 0.011 |
| 1.00 | 0.6 | 2.4 | 2.8 | 0.010 |
| 1.50 | 0.7 | 2.8 | 3.4 | 0.009 |
| 2.50 | 0.8 | 3.4 | 4.1 | 0.009 |
Utilizing high-quality raw materials and advanced manufacturing processes ensures products meet strict specifications. Comprehensive inspection systems across four key stages—raw material, in-process, semi-finished, and finished product inspection—guarantee full traceability.
Ample inventory across all product categories enables prompt fulfillment of urgent demands. Strategic stock of semi-finished products and flexible production management allow for efficient handling of time-sensitive requirements.
Custom projects are supported by a streamlined workflow and dedicated service teams comprising experts from R&D, production, and technical departments to ensure professional solutions tailored to specific needs.
